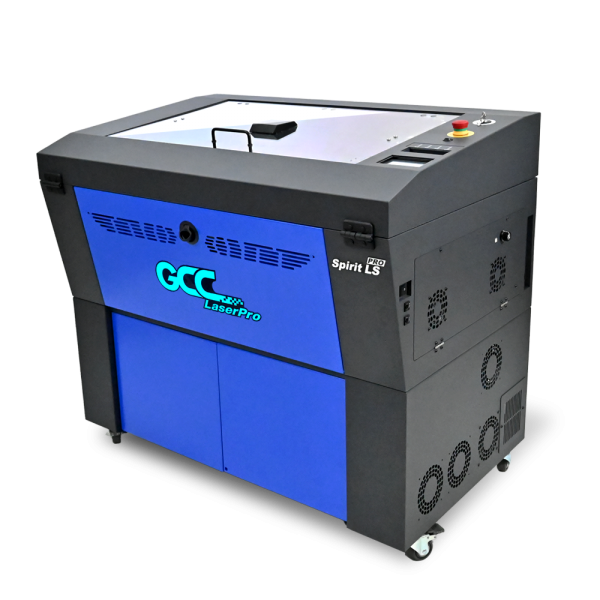

Laser Machine | S400 | Spirit GLS Hybrid | Spirit GLS Hybrid PRO | Spirit LS PRO |
Wattage | CO₂ Laser: 60W~120W | CO₂ Laser: 30W~100W | CO₂ Laser: 30W~100W | CO₂ Laser: 30W~100W |
Fiber Laser: 30W, 50W | Fiber Laser: 20W~60W | Fiber Laser: 30W, 50W | Fiber Laser: 30W, 50W |
| | Dual: Available | |
Working Area | 916 x 610 mm (36 x 24 in.) Extendable to 1016 x 610 mm (40 x 24 in.) | 860 x 610mm (34 x 24 in.) Extendable to 960 x 610 mm (38 x 24 in.) | 860 x 610mm (34 x 24 in.) Extendable to 960 x 610 mm (38 x 24 in.) | 640 x 460 mm (25 x 18 in.) Extendable to 740 x 460 mm (29 x 18 in.) |
Z-axis | 280 mm (11 in.) | 177 mm (7 in.) | 177 mm (7 in.) | 165 mm (6.5 in.) |
Max. Working Speed | 3.55 m/s (140 in/s) | 2.03 m/s (80 in/s) | 2.54 m/s (100 in/s) ~ 3.04 m/s (120 in/s), depending on the laser wattage | 2.54 m/s (100 in/s) ~ 3.04 m/s (120 in/s), depending on the laser wattage |
Highlights | Closed-loop DC servo motor for precise movement of laser carriage | Closed-loop DC servo motor for precise movement of laser carriage | Closed-loop DC servo motor for precise movement of laser carriage | Closed-loop DC servo motor for precise movement of laser carriage |
GCC SmartFLOW™ technology provides outstanding dust protection | QSM (Quality Speed Mode) ensures full-quality engraving at top speed | Equipped with SmartEYES™, enabling easier positioning | Equipped with SmartEYES™, enabling easier positioning |
GCC SmartLID™ invention makes maintenance a lot easier | DuraGuide motion system with Kevlar belt ensures high-quality output | DuraGuide motion system with Kevlar belt ensures high-quality output | Quick-release measuring ruler |
Quality Speed Mode delivers 100% engraving quality even at max speed | SmartACT™ reduces ramping and run time for higher productivity | Plug-and-play USB port enables rapid data transmission | Both CO2 and fiber models are available |
CO₂ and Fiber laser option in one laser machine | LED light modules illuminate the working area | Optional SmartGUARD™ fire alarm device for enhanced operational safety | Comes with a 4” Touch Panel display |
