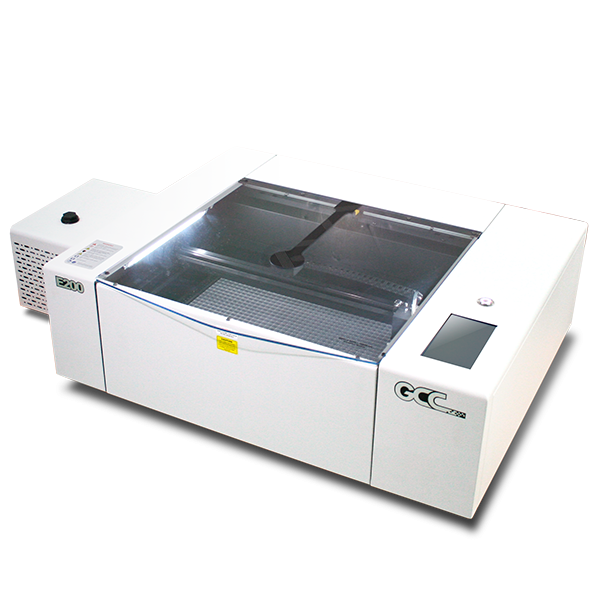

🆕 E200 40W CO2 Desktop Laser Engraver
E200 is GCC latest LaserPro professional-grade co2 desktop laser engraving machine, containing advanced functions with user-friendly design and excellent artwork presented.
1 1
Laser Engraving Machine
🆕 E200 40W CO2 Desktop Laser Engraver
E200 co2 desktop laser engraver provides an easy operating workflow and is able to complete different processing procedures quickly, containing various advanced functions with stable quality and excellent safety featur
Feature
High Throughput for Unlimited Imagination
20ips Processing speed with DC servo motor to boost productivity while maintaining precision.
Unmatchable Output Quality
E200 desktop laser engraver takes your engraving and cutting to a level beyond other desktop lasers.
Live Camera Preview
E200 desktop laser engraver's on board camera allows you to preview your design to make positioning simple and easy
7” Large Touch Panel
With colorful intuitive 7” touchscreen interface, E200 desktop laser engraver can bring your inspiration to life.
Free Bundle with GCC Materials to Start Your Business with Ease
Every E200 desktop laser engraver comes with free GCC Materials with barcode stickers. Camera can read the QR code and automatically set up the parameters according to different materials.

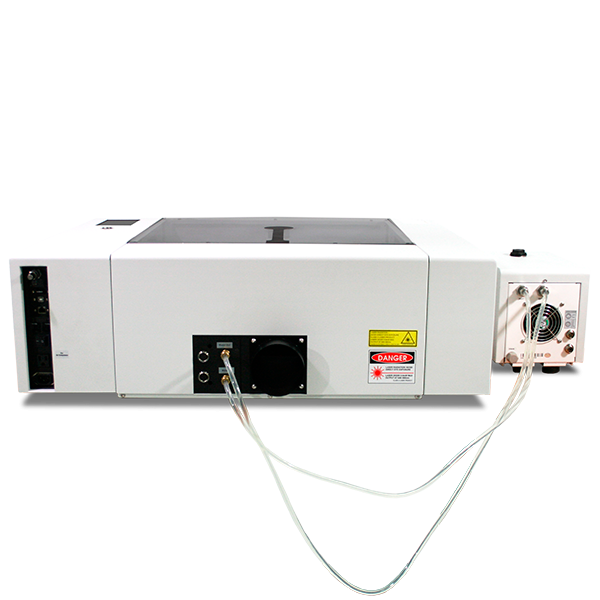

Standard Water Chiller Allows For High Production
E200 desktop laser engraver comes with a standard water chiller to ensure machine efficiency.
Stamp Mode With Shoulder Level Function
E200 desktop laser engraver stamp mode with shoulder level function enables you to produce a professional stamp easily.
E200 Desktop Laser Engraver Laserable Materials List | |||||
| Material | Engraving | Cutting | Remark | ||
|---|---|---|---|---|---|
 | Acrylic |  | | 10mm | |
 | Wood | | | 3mm | |
 | MDF | | | 3mm | |
 | Cork | | | ||
 | Cardboard | | | ||
 | Paper | | | Paper engraving effect depends on paper color | |
 | Rubber | | | 2mm | |
 | Glass | |  | ||
 | Tile | | | ||
 | Marble / Granite | | | ||
 | Leather | | | ||
 | Food | | | ||
 | Plastic | PET | | | |
 | Textile | Fabric | | | |
| PU film (Heat transfer material) | | | |||
| Twill | | | |||
 | Metal | Anodized Aluminum | | | |
| Stainless Steel | | | (with spray) | ||
Rotary Attachment - E200
In addition to the standard X, Y, and Z axes, the rotary attachment of E200 desktop laser engraver allows for a fourth axis that rotates the object 360° for laser engraving on cups, wine glasses, cylindrical objects, and even spherical objects.
The maximum diameter and length of the to-be-engraved object are 70mm (3 inches) respectively. Its maximum weight should not exceed 3kg (6 lbs).
The maximum diameter and length of the to-be-engraved object are 70mm (3 inches) respectively. Its maximum weight should not exceed 3kg (6 lbs).
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
Fume Extraction System
CE-certified fume extraction systems, are designed to remove the hazardous fumes and dusts during laser processing to protect the health of operators, eliminate environmental pollution and enhance the laser cutting.
"For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board."
"For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board."
GCC LaserPro E200 Desktop Laser Engraver | |
|---|---|
| Work Area | 510 x 330 mm (20 x 12.9 in.) |
| Maximum Part Size (WxLxH) | 520 x 340 x 20 mm (20.4 x 13.4 x 0.78 in.) (with grid cutting table) |
| 505 x 340 x 76 mm (19.8 x 13.4 x 2.99 in.) (remove grid cutting table) | |
| CCD Camera | Standard, accurate within 4mm (0.16 in.) |
| Working table | Standard grid cutting table |
| Dimensions | 915 x 780 x 300 mm (36 x 30.7 x 11.8 in. ) |
| Laser Wattage | DC driven glass laser tube: 40W |
| Laser Source | Sealed CO2 laser |
| Drive | Closed-loop DC Servo Control |
| Maximum Working Speed | 20 IPS |
| Maximum Cutting Thickness | 10mm |
| Speed Control | Adjustable from 0.1~100% (Up to 5 color-linked speed settings per job |
| Power Control | Adjustable from 0~100% (Up to 5 color-linked power settings per job |
| DPI | Available 250,380,500,760,1000 |
| Focus Lens | Standard 1.5” |
| Computer interface | Full-speed USB 2.0 port, 10 Base-T Ethernet |
| Compatible Operating systems | MS Windows |
| Control Panel | 7”touch screen |
| Connection | WiFi, Ethernet, USB |
| Water Chiller | Standard |
| Safety | Class I Laser Product Complies with EN60825-1 Class II Laser Product Complies with CDRH |
| Facility Requirements | |
| Electrical | 100-240VAC, 50-60Hz Auto Switching, Max. 15A |
| Air Exhaust System | External exhaust system with minimum flow rate 300 m3/h (10594 ft3/min) is required, 2,500PA negative pressure (Pure-Air PA-300 @ 4" exhaust port) |
| *Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details. | |
