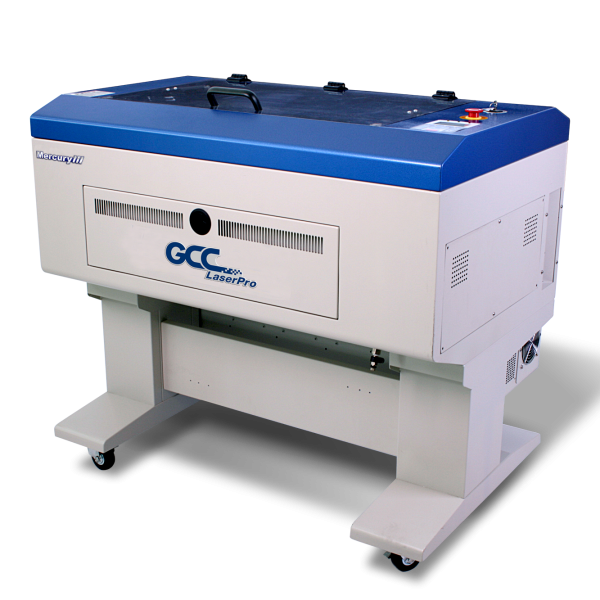

Mercury III 12-80W CO2 Laser Engraver
GCC LaserPro Mercury III CO2 laser engraver carries the fine tradition of the Mercury series to provide stable engraving quality. The servo motor enables fast movement of lens carriage while maintaining accuracy over time, giving you reliable and dependab
Mercury III 12-60W CO2 Laser Engraver -5
Mercury III 12-60W CO2 Laser Engraver -1
Mercury III 12-60W CO2 Laser Engraver -2
Mercury III 12-60W CO2 Laser Engraver -3
Mercury III 12-60W CO2 Laser Engraver -4
1 1
Laser Engraving Machine
Mercury III 12-80W CO2 Laser Engraver
Mercury III CO2 laser engraver is reinforced with new features, including key switch, user-friendly control panel, and SmartCENTER which brings you the best way for laser engraving.

Mercury III 12-80W CO2 Laser Engraver Feature

RoHS Compliance

All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.

Flexible 3D and Stamp Engraving

Advanced print driver with over 200 level gray scales to presents you fabulous 3D laser engraving output. And through the intelligent stamp engraving mode you can create a fantastic logo stamp.

Closed-loop DC Servo Motor

Mercury III laser engraver utilizes Closed-loop DC servo motor that delivers greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy for laser engraving due to the continuous movement, instead of constant stopping and starting.

AutoFocus (Patented)

Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the laser engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

Pass-through Front to Rear Doors (Optional)

A design with doors on both ends of the laser engraver to accommodate extremely long working pieces without the need for a screwdriver.

Drag-N-Play

An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.

Easy to Use Control Panel

A control panel with coherent hot-key design and graphical icon displays that allows you to change laser parameter settings, set jobs to repeat unlimited times, queue jobs, delete jobs, and more.

Key Switch Emergency Stop

Key switch safeguards the laser engaver from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

Bridge Cutting

Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfills versatile requirements. Define the cutting gap to create the dashed line effect from user-friendly print driver interface.
Bridge Cutting online Video
Rotary Attachment

Rotary Attachment

Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 110 mm and 450 mm respectively. Its maximum weight should not exceed 4kgs.
SmartTOOL™

SmartTOOL™

The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
Purex Fume Extraction System

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
Air Compressor

Air Compressor

A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life.
SmartGUARD™ Fire Alarm (Patented)

SmartGUARD™ Fire Alarm (Patented)

Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table

Honeycomb Table

A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINT™

SmartPRINT™

SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.
Entry-Level Fume Extraction System

Entry-Level Fume Extraction System

GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove hazardous fumes and dust during laser processing to protect the health of operators, eliminate environmental pollution and enhance laser engraving and cutting.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
External Interface Control Board

External Interface Control Board

The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
SmartAIR™ Fine Nozzle

SmartAIR™ Fine Nozzle

The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
AAS Contour Cutting Device

AAS Contour Cutting Device

Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics for laser engravers and cutters.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 458mm X 432mm (18" x 17") after installing the AAS Contour Cutting Device.

Mercury III 12-80W CO2 Laser Engraver Spec

Mercury III
Work Area635 x 458 mm (25 x 18 in.)
Max. Part Size
(L x W x H)
All Doors Closed685 x 482 x 165 mm (27 x 19 x 6.5 in.)
All Doors Open685 x ∞ x 165 mm (27 x ∞ x 6.5 in.)
Table Size790 x 530 mm (31.1 x 20.9 in.)
Dimensions 1125 x 720 x 1005 mm (44.3 x 28.3 x 39.6 in.)
Laser Source

12, 30, 40, 60, 80W Sealed CO2 Laser

CoolingAir-cooled, Operating environment temperature 15°- 30°C (60°- 86°F)
DriveClosed-loop DC Servo Control
Speed ControlAdjustable from 0.1~100% of 42 IPS
(Up to 16 color-linked speed settings per job)
Power ControlAdjustable from 1-100% (Up to 16 color-linked power settings per job)
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254mm or 0.1% of move, whichever is greater
Z-Axis MovementAutomatic
Focus LensStandard 2.0", optional 1.5", 2.5" & 4.0" available
Resolution (DPI)Available125, 250, 300, 380, 500, 600,760,1000, 1500
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Compatible Operating SystemsMS Windows
Display Panel4-line LCD panel showing current file name, total working time,
laser power, engraving speed, file(s) loaded into memory buffer,
setup and diagnostic menus.
SafetyClass 1 Laser Product Compliant with EN60825
Class 2 Laser Product Compliant with CDRH
2006/42/EC Machinery Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Auto FocusV
Red Dot PointerV
Pass Through DoorsV
3D and Stamp ModeV
Operation Voltage100-240VAC, 50-60Hz Auto Switching, Max. 15A
Fume Extraction SystemExternal exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.​
