MG380Hybrid 12-100W CO2 Laser Engraver
The GCC LaserPro MG380Hybrid CO2 Laser Engraver is equipped with metal laser tube and glass laser tube at the same time which allows users to produce superior laser engraving and cutting workpiece.

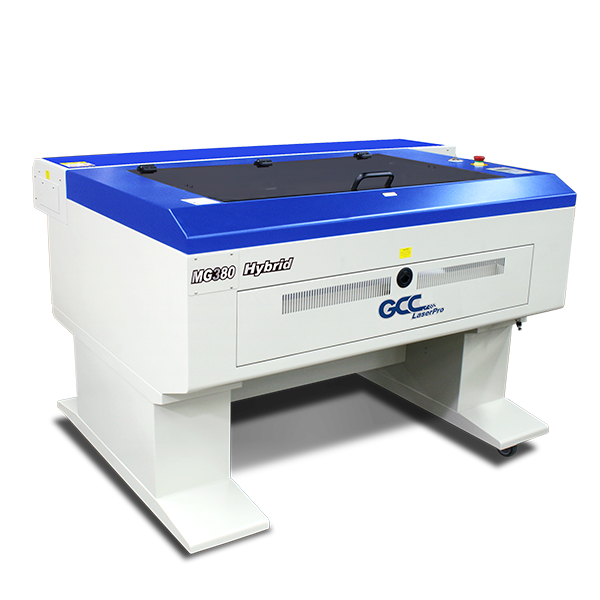

MG380Hybrid Laser Engraver
MG380Hybrid Laser Engraver-2
MG380Hybrid Laser Engraver-3
1 1
Laser Engraving Machine
MG380Hybrid 12-100W CO2 Laser Engraver
This all-in-one laser engraver machine saves your storage space and makes your profit maximum. GCC LaserPro always has an edge over the others with numerous uniquely innovative and user-friendly features.
RoHS Compliance
All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.
Dual Laser Tubes (Patented)
Possesses the high laser engraving quality of RF driven laser tubes while taking advantage of low cost per wattage of DC excited CO2 glass laser tubes to deliver clear cutting edge on thick materials.
Innovative Software Features
Simple step engraving and cutting laser parameters in GCC LaserPro driver, MG380Hybrid will automatically use different laser tubes to do its best output quality. A real smart laser engraver/cutter ever.
Emergency Stop
Big red button located on the top of the laser engraver allows operators to stop the laser and the motion carriage immediately to provide a highly safe operational environment.
Motion System with DC Servo Motor
MG380Hybrid laser engraver utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.
AutoFocus (Patented)
Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.
Programmable Origin
Easy-to-use position modes allow the operator an effortless way to setup laser engraving jobs with Drag-N-Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
SmartBOX™ (Optional)
This innovative design is composed of a ventilation box, a honeycomb table and easily rearrange able magnetic supporting pieces. It provides great cutting quality and remarkably enhances air extraction for laser engravers and cutters.
Pass-through Front to Rear Doors (Optional)
A design with doors on both ends of the laser engraver to accommodate extremely long working pieces without the need for a screwdriver.
Easy-to-use Control Panel
Embrace total solution in one machine. Innovative GCC LaserPro MG380Hybrid deliver superior laser engraving and cutting result by its high end technology.
Rigid and Reliable Construction
The laser engraver solid structure ensures superior output quality and motion stability for superb performance.
Superb Engraving and Cutting Quality
Designed for simplifying complex tasks, the GCC LaserPro MG380Hybrid laser engraver user-friendly interface is a great facilitator to provide powerful function settings.
AAS Contour Cutting Device (Patented)(Optional)
Developed by LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics.
Purex Fume Extraction System
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
Rotary Attachment
Rotary Attachment
Elevate the laser engraver and cutter to a higher level! By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 7 mm / 110 mm and 650 mm respectively. Its maximum weight should not exceed 4kgs.
Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life.
SmartGUARD™ Fire Alarm (Patented)
SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table
Honeycomb Table
A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINT™
SmartPRINT™
SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.
Entry-Level Fume Extraction System
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove hazardous fumes and dust during laser processing to protect the health of operators, eliminate environmental pollution and enhance laser engraving and cutting.
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.
External Interface Control Board
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
AAS Contour Cutting Device (Patented)
AAS Contour Cutting Device (Patented)
Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics for laser engravers and cutters.
Note: Working area and engraving speed will be reduced when AAS module is installed.
*The working area will be changed to 790mm X 580mm (31.1" x 22.8") after installing the AAS Contour Cutting Device.
SmartBOX™
SmartBOX™
An innovative technology for laser engravers and cutters that integrates the ventilation box with a honeycomb table or aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.
SmartAIR™ Fine Nozzle
SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
MG380HybridMG380Hybrid-12100MG380Hybrid-30100
Laser WattageRF driven metal laser tube: 12W
DC driven glass laser tube: 100W
RF driven metal laser tube: 30W
DC driven glass laser tube: 100W
Laser SourceSealed CO2 Laser
Laser CoolingRF driven metal laser tube: Air Cooled / DC driven glass laser tube: Water Cooled
Working Area960 x 610 mm (38 x 24 in.)
Max. Part Size
(L x W x H)
All Doors Closed1041 x 635 x 165 mm (41 x 25 x 6.5 in. )
All Doors Open1041 x ∞ x 165 mm (41 x ∞ x 6.5 in. )
Table Size1085 x 750 mm (42.7 x 29.5 in. )
Dimensions1750 x 1242 x 1017 mm (68.9 x 48.9 x 40 in.)
Driving MotorClosed-loop DC Servo Control
Maximum Motor Speed40 IPS
Speed ControlAdjustable from 0.1~100% ( Up to 16 color-linked speed settings per job )
Power ControlAdjustable from 0~100% ( Up to 16 color-linked power settings per job )
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254 mm or 0.1% of move, whichever is greater
Resolution (DPI)Available 125, 250, 300, 380, 500, 600, 760, 1000
Z-Axis MovementAutomatic
Focus LensStandard 2.0", optional 1.5", 3"
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Memory Buffer32MB standard
SafetyClass 1 Laser Product Compliant with EN60825
Class 2 Laser Product Compliant with CDRH
2006/42/EC Machinery Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Facility Requirements
Operation Voltage200-240VAC, 50/60Hz auto switching, Max. 8A
Water ChillerExternal water chiller required
External Exhaust Systemwith minimum flow rate 800m3/h (CFM 471 ft3/min) is required,2.3kPA negative pressure
(Pure-Air PA-1500FS @ 4" & 8" exhaust port)

*Speed is not equal to throughput. See dealer or visit www.GCCworld.com for more details.
Specifications are subject to change without prior notice.
♦TW Patent I430864
♦US Patent 8,748,775 B2
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
