Digital Printing Machine
JF-2418UV Inkjet Printer
The new generation of GCC flatbed UV printer, JF-2418UV, has an attractive new look, high throughput, reliable and stable printing quality.
1 1
Digital Printing Machine
JF-2418UV Inkjet Printer
JF-2418UV Inkjet Printer owns a user-friendly interface and unique functions including tactile printing ability, high gap printing function, cold foil sleeking capability that provides great versatility and uplifts printing possibility.
Texture Printing Effect
JF-2418UV is a convenient tool for anyone to create raised pattern and provide added value to RFID, boutique goods and jewelry, oil painting reproduction and so on.Moreover, the high resolution printing ability delivers refined output—even 2pt small letters can be printed with high sharpness and definition in sophisticated details to serve a diversity of applications.

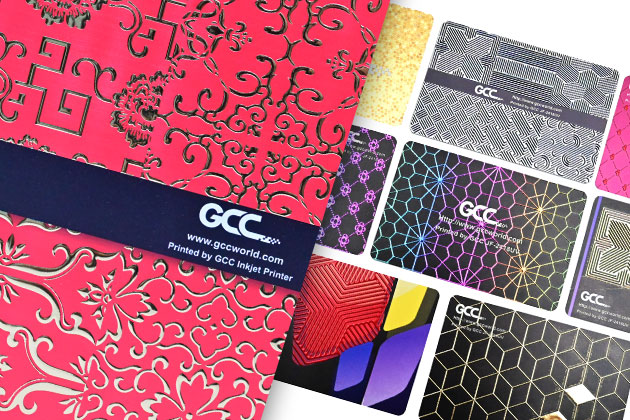

Cold Foil Application
With a specially-developed printing process, LED energy control, and GCC primer inks, JF-2418UV can easily decorate printed substrates into sophisticated and beautiful merchandises, such as, Mifare cards, invitation cards, acrylics.
* Cold foil function is only available for JF-2418UV (with primer) model.
** A foil sleeking machine is required to apply foil on printed media.
Built-in ADA Printing Function
With the specially-developed ADA printing technology, JF-2418UV can produce ADA signs with one simple printing process. JF-2418UV provides the best solution for ADA-compliant sign printing in a wide range of applications.
Dedicated White Solution
JF-2418UV offers four major utilizing white ink applications as a base, overcoat, spot color and color-white-color for 3 layer printing at the same time. With the White solution, it can be easily used to produce brilliant and rich color output on any transparent and dark media, offering excellent quality images to fulfill all needs for Sign, Labeling and Packaging industries.
Advanced Varnish Printing Technology
Varnish is a transparent spread on the surfaces of printed matters (images) that forms a thin and even transparent gloss layer after its leveling and UV curing for drying process. Varnish not only protects printed content but enhances durability. Different varnish modes are available that offer the advantages of a high value added application and cost saving on labor and laminator equipment as well as creates the tactile attribute of graphics, which lifts the added value of products and presents eye-catching printing effect.
The Features of the Varnish Modes:
High Gap Printing
Allow user to print on materials with uneven surfaces with a slope of 10 to 20 degree, which avoids print head being crushed and retains the print quality at the same time. For example, custom ceramic plate, tablet cover, etc.
* Improper usage of high gap printing may cause print head nozzles clogged by the reflection of UV light.
** A higher gap between print heads and substrate may cause printing images vaguer when processing.
Max. Depth 30cm Object Direct Printing
Accept up to 30cm (11.8”) thick materials pass through with extra-large substrate accommodation capability such as Paddle, Tennis and Hokey racket
Automated White Ink Circulation
Knowing that white ink settles down easily, GCC specially developed automated white ink circulation regularly performs from ink bottle to print heads to prevent the pigment in white ink from settling. The automated white ink circulation greatly diminish the white ink loss and generate the outstanding printing quality.
Rod LED Lens
Rod Lensare used on the UV LED lampsto condense LED lights to reduce reflection and damage to print heads and nozzles.
SmartMESH™ Banding Free Function
Specially designed SmartMESH™ function applies complex algorithm to ink jetting patterns control to create unparalleled graphic designs. The advanced SmartMESH™ technology effectively solves banding issues and greatly improves image quality.
Support ARCH C Standard Material Size
GCC printer size can handle ARCH C (610 x 450 mm / 24”x 18“) in addition to on-demand printing, it is also suitable for digital press embellishment on packaging and standard size of acrylic.
Printhead Gap Auto-Adjustment
Printhead Gap Auto- Adjustment lowers the platform automatically when detecting obstacles that block the movement of printhead before printing to avoid printhead damages.
Rotary Attachment
Rotary Attachment
With GCC innovated rotary attachment system, JF-240UV and JF-2418UV can perfectly perform on cylindrical items, such as bottles and mugs.
Roll to Roll System
Roll to Roll System
Roll to Roll system running on GCC JF-2418UV allows you to lower downtime, operator involvement and meet projects on-demand.
ModelJF-2418UV 3PHJF-2418UV 6PH
Printing methodOn-demand Piezo head
Print head (Drop size)Japanese print head dedicated for UV printing solution
Printing area (W x L)610 x 457 mm (24 x 18 in.)
Max. media size
(W x D x H)
Sheet610 x 457 x 300 mm (24  x 18  x 11.8 in.)
WeightLess than 15 kg
Table height adjustmentAMC
SpeedHigh Speed3.75 m2/hr6.17 m2/hr
Quality2.23 m2/hr4.15 m2/hr
High Density1.6 m2/hr2.04 m2/hr
InkType1 liter UV curable ink
Ink curing unitDual UV LED lamps
Printing resolutions1200x600dpi、1200x1200dpi
Distance Accuracy – When printingError of less than +/-0.3% of distance traveled,  or+/-0.3mm (0.01 inch), whichever is greater
Z movementMotorized
Control PanelTouch Screen (480 x 272 resolution)
Environment (Temperature/Humidity)22℃-30 ℃ (71.6℉- 86 ℉) / (40%-60% humidity), higher recommended
Special functionTactile printing function, cold foil application, high gap printing
OptionalRotary attachment / Roll to Roll system / Fume Extraction Unit / Static Eliminator module
Dimension (W x D x H)1160 x 2034 x 1140 mm
1290 x 2130 x 1450 mm (with package)
G.W.445 kg
