GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is proud to launch the Jaguar V PPF.
High-end car owners always worry about little nicks or chips that may happen to their precious cars down the road, and that’s why the demands for Paint Protection Film (PPF) grow dramatically these years, as the film shields against chips and scratches.

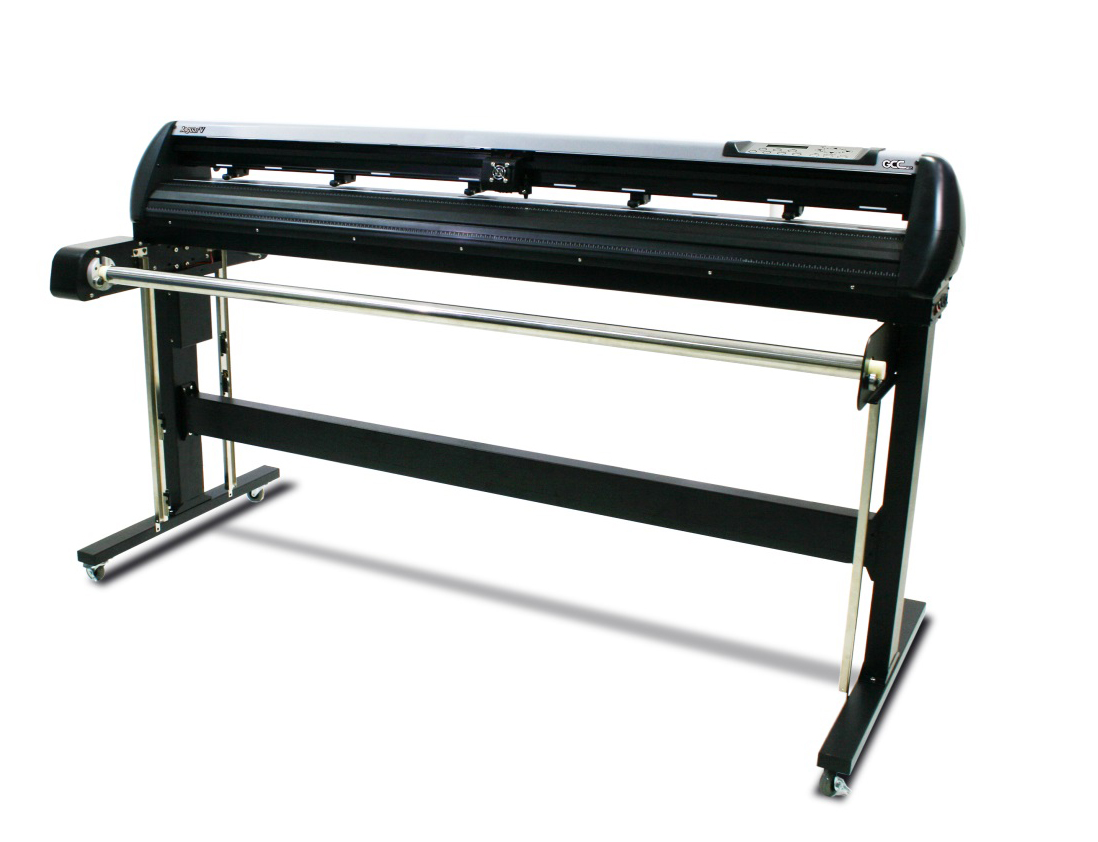

Traditionally PPF is cut manually; now GCC develops the new Jaguar V 160 PPF equipped with the unique Media Take-up System for roll-to-roll cutting that makes paint protection film cutting much more efficiently and cost lower than manual cutting. The Jaguar V PPF is designed to with maximum cutting width of 1570 mm specifically for PPF materials; Jaguar V 160 PPF is designed as a shorter machine than Jaguar V 183 for saving workshop space. To Cut PPF, Jaguar V 160 PPF is your best helper.
The specifications of this machine are provided in the table below.
|Max. Cutting Width||1570mm(62in)|
|Max. Cutting Length||50m (164ft)|
|Max. Media Loading Width||1782mm (70.2 in)|
|Min. Media Loading Width||250mm (9.8in)|
|Number of Pinch Rollers||6|
|Acceptable Material Thickness||0.8 mm (0.03in)|
|Drive Motor||DC Servo Control|
|Cutting Force||5~600 g|
|Max. Cutting Speed||1530 mm/sec (60 ips) (at 45° direction)|
|Memory Buffer||32 MB|
|Interfaces||USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet|
|Distance Accuracy||±0.254 mm or ±0.1% of move, whichever is greater|
|Dimension (HxWxD) mm||1127 * 1962 * 756|
|(HxWxD) in||44.4 * 77.2 * 29.8|
|Net Weight||77.5 kg|
|Automatic-Aligning System (AAS II)||N/A|

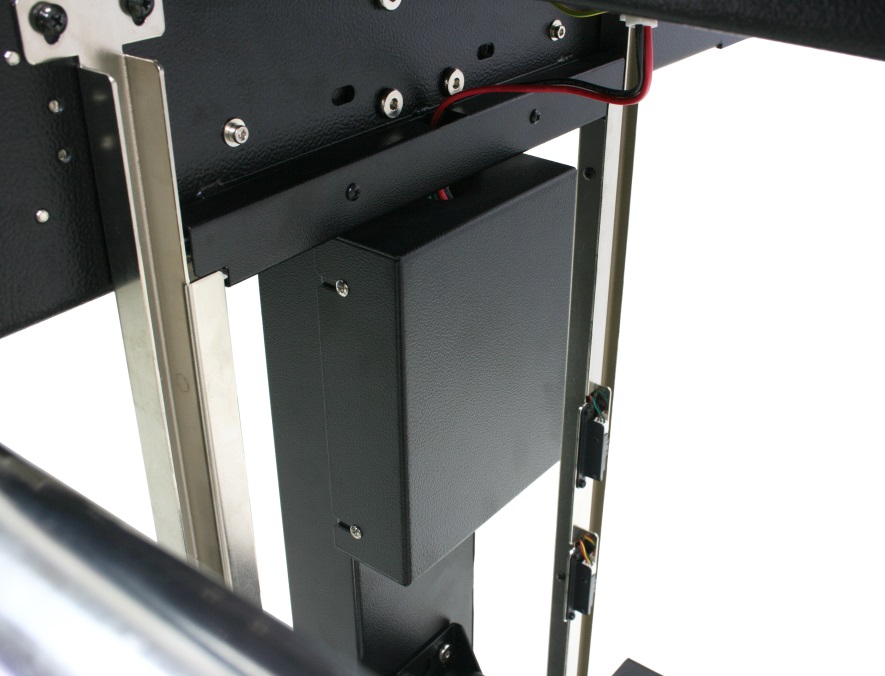

|Media Take-up System||Standard|
